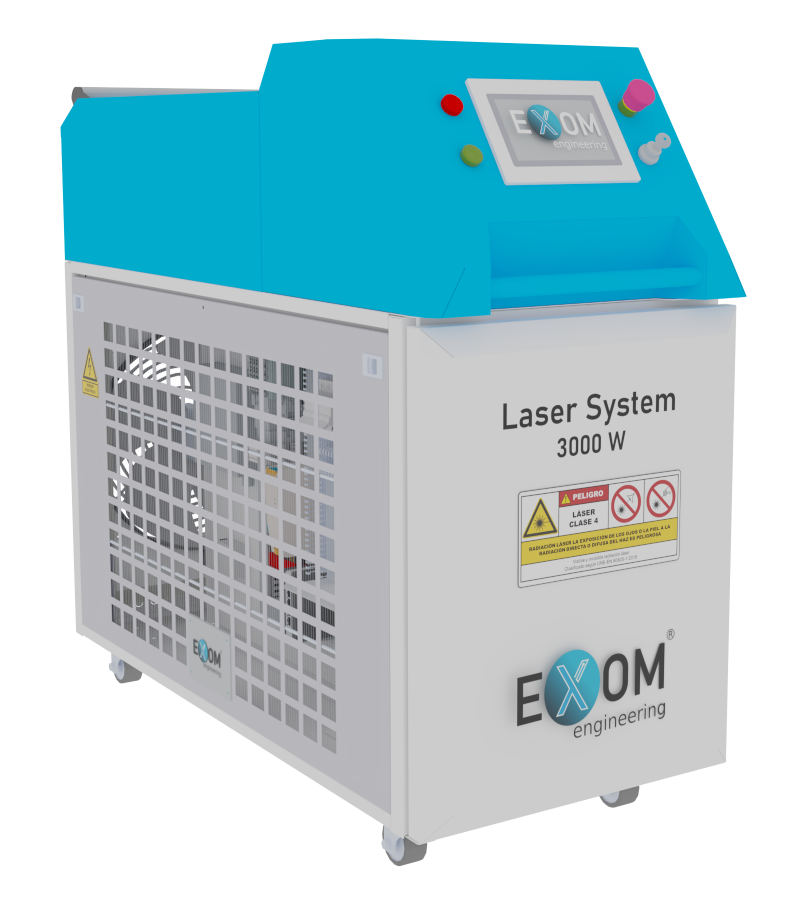

Laser System up to 3000 W
| Laser Power | 1.5 kW, 2 kW and 3 kW |
|---|---|
| Fiber Length | up to 15 m |
| Wavelength | 1080 ± 10 nm |
| PLC | B&R Industrial Automation |
| Comm. Protocols | TCP-IP, Profinet and ROS |
| Interfaces | GPIO Digital Analogue, CANOpen, RS232 |
| Cooling | Water cooled |
| Water tank | 22 L |
| Software | EXOM HMI, DYLABESH VIS and DYLABESH IR |
| Dimensions | 1250 x 510 x 1070 mm³ |
| Weight | 220 kg |
The Laser System 3000 W is a versatile solution that can be integrated into robotic systems along with laser welding heads such as the Wobbwelder (SO1) and the SO2. It supports communication protocols like TCP-IP, PROFINET, and ROS, making it widely compatible with industrial equipment. Thanks to the integrated B&R PLC, users also have the capability to create custom application curves, providing a high degree of flexibility for various tasks.
