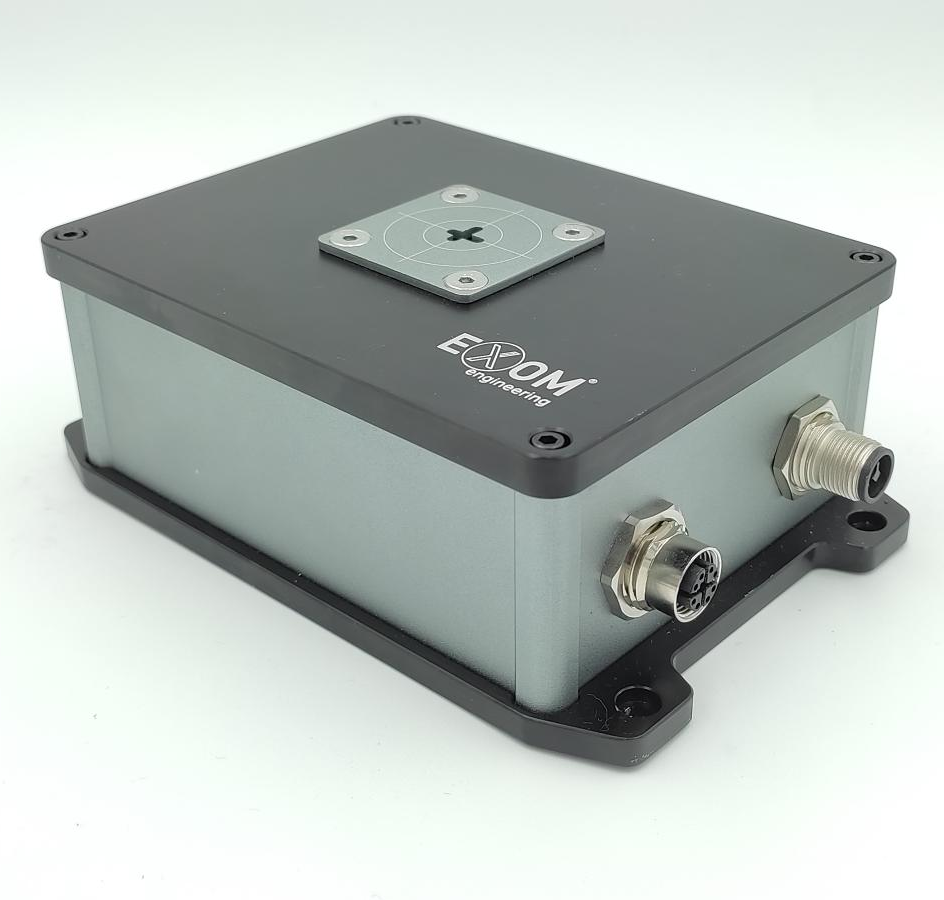

Referencing Infrared Emitter
| Temperature Range | 120 - 600 ± 10 [ºC] |
|---|---|
| Data Transfer | Gigabit Ethernet |
| Radiation Wavelength | 2 - 6 μm |
| Dimensions | 105.1 x 91.5 x 45.1 mm (LxWxH) |
| Power Consumption | 60 W |
| Housing Material | Aluminum |
Manufacturing processes in which a thermal camera is used as a key process control element, require referencing cycles to keep the process window as narrow as possible. The infrared Emitter IR-E is a cost-effective, easy-to-handle device that emits a stable infrared radiation similarly to a blackbody with a known temperature between 120°C and 600°C. The IR-E allows to set up a known reference temperature that can be used to monitor and control the irradiation observed by a thermal camera.
