Hairpin identification during the laser welding of stators is crucial for several reasons:

Quality Assurance: Identifying and tracking hairpins ensures the quality of the welding process. Hairpins are structural components in stators, and their proper alignment and welding are essential for the overall integrity of the stator. Accurate identification helps in maintaining high-quality welds.

Consistent Performance: Hairpins play a role in the performance of electric motors, and their proper welding ensures consistent and reliable motor performance. Inconsistent or faulty hairpin welding can lead to variations in electrical conductivity and performance issues in the motor.

Preventing Defects: Incorrect hairpin welding can result in defects such as misalignment or incomplete fusion. Identifying hairpins allows for real-time monitoring and correction of these defects during the welding process, preventing the production of defective stators.

Optimizing Efficiency: Accurate hairpin identification allows for the adjustment of laser parameters and welding conditions in real-time. This optimization ensures that the laser energy is applied precisely to the hairpin area, maximizing efficiency and minimizing the risk of overheating or under-welding.

Cost Savings: Early identification of hairpin welding issues can prevent the production of faulty stators, reducing the need for rework or scrapping of defective components. This leads to cost savings in terms of material and labor.

Compliance with Standards: In many industries, including automotive and electrical engineering, adherence to strict quality standards is essential. Proper hairpin identification and welding ensure that the final product meets industry standards and regulations.

In summary, hairpin identification during laser welding of stators is essential for maintaining product quality, ensuring consistent performance, preventing defects, optimizing efficiency, achieving cost savings, and complying with industry standards. It contributes to the overall reliability and functionality of electric motors using stators in various applications.

Video example of image processing:

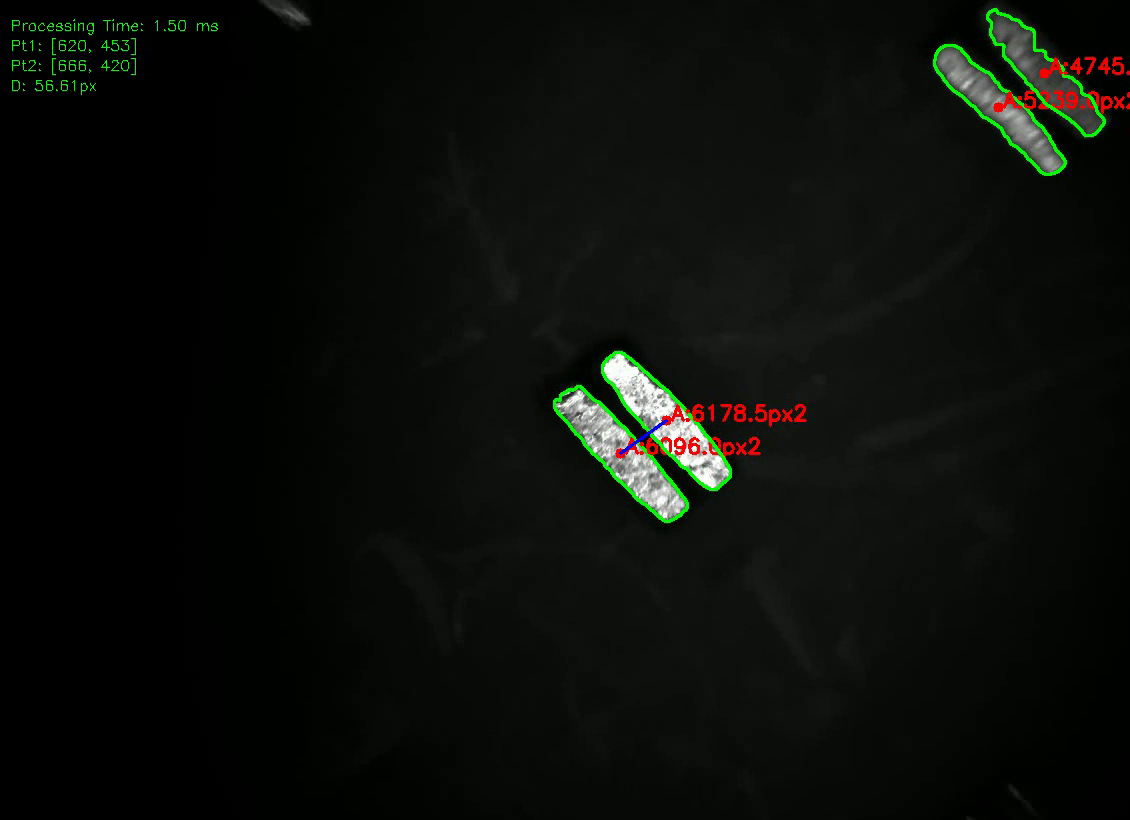

In the video, the minimal distance between both areas is calculated and represented with the blue line, along with pixel values. This information can be used to adjust the wobble strategy during laser welding. Additionally, the pixel coordinates of the first and second points, representing the centroid of each area, are displayed in the upper-left corner of the video.
